Item parameter model: ZGS1, ZGS2, ZGS3, ZGS5, ZGS8, ZGS10, ZGS15
Effective volume (M2): 1, 2, 3, 5, 8, 10, 15
Production capacity (t/d): 3-4, 6-8, 9-12, 15-20, 24-32, 30-45, 40-80
Pulp concentration(%): 8~15%
Cell body diameter (mm): 1200, 1550, 1800, 2200, 2500, 2800, 3500
Impeller diameter (mm): 440, 440, 680, 720, 820, 860, 1050
Impeller rotation speed (r/min): 440, 440, 400, 380, 340, 320, 280
Pulp discharging door diameter (mm): 108, 159, 219, 219, 219, 250, 250
Dilution door diameter (mm): 50, 89, 89, 89, 108, 108, 108
ZGS Energy-saving type Model: Y160L-6, Y180L-6, Y200L2-6, Y225M-6, Y280S-6, Y280M-6, Y315S-6
Power (kw): 11, 15, 22, 30, 45, 55, 75

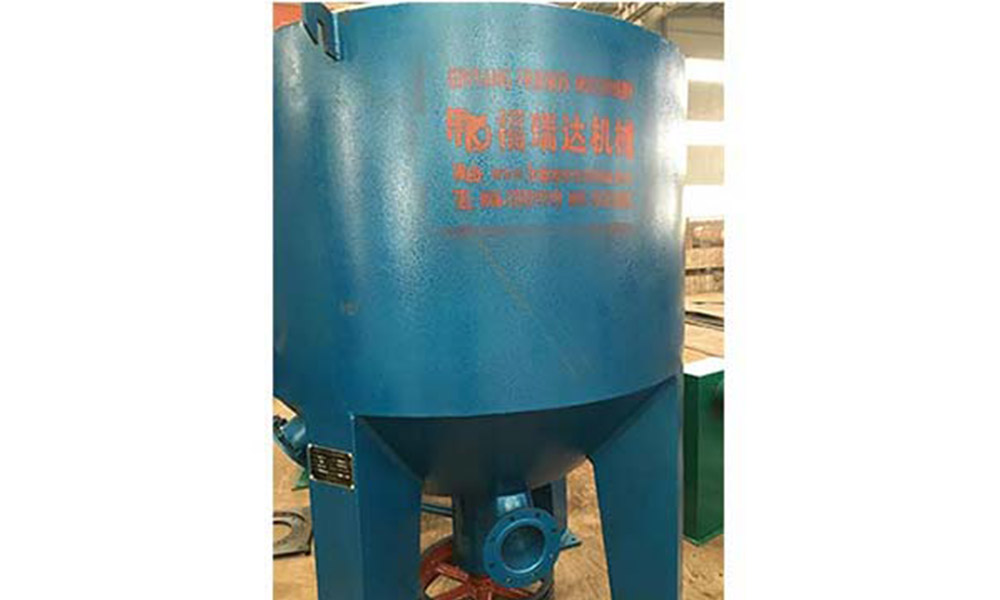

Series enhancement type high-enriched hydrapulper machine under the high temperature, high-thick condition, make the paper material stand strong vortex circulatio function, produce strong friction, tear and crumple, make the paper material fully discontent. It has already ensure the fibre length and intensity, prevented the impurity in the wasted paper fom being crushed, and makes the printing ink pigment apter to separate out from the fiber again. it is obviously to get rid of hot melt material to get the fine pulp effect.
